Mizumoto Machine Mfg. Co.

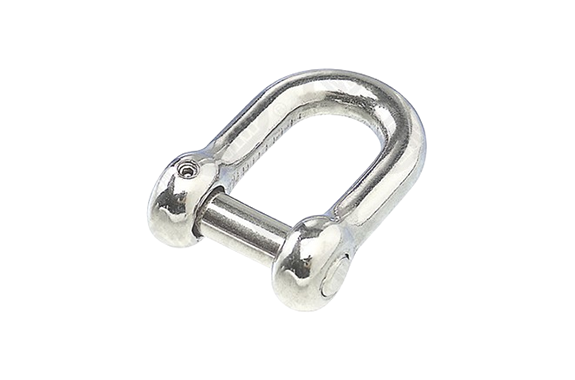

Mizumoto CSF Series Screw-Down Sinking Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: CSF Series
Features
- It is locked with a set screw (holo screw) with a hexagonal hole from the top of the pin, so the pin is less likely to loosen.
- Since it is a sinking type shackle, ropes and other things will not get caught.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint for terminal fittings.
- To prevent theft of metal fittings.
Specifications
| Product Number | D | D2 | L | B | d | Thread Size | Wrench Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| CSF-6 | 6 | 6 | 24 | 12 | 12 | M-6 | 1.5 | 23 | 170 | 1.67 |
| CSF-7 | 7 | 7 | 28 | 14 | 14 | W-5/16 | 1.5 | 36 | 200 | 1.96 |
| CSF-8 | 8 | 8 | 32 | 16 | 16 | W-5/16 | 1.5 | 53 | 250 | 2.45 |
| CSF-9 | 9 | 9 | 36 | 18 | 18 | W-3/8 | 2.0 | 72 | 300 | 2.94 |
| CSF-10 | 10 | 10 | 40 | 20 | 20 | W-3/8 | 2.0 | 103 | 350 | 3.43 |
| CSF-12 | 12 | 12 | 48 | 24 | 24 | W-1/2 | 2.5 | 182 | 420 | 4.12 |
| CSF-13 | 13 | 13 | 52 | 26 | 26 | W-1/2 | 2.5 | 236 | 500 | 4.90 |
| CSF-16 | 16 | 16 | 64 | 32 | 32 | W-5/8 | 2.5 | 420 | 800 | 7.84 |
| CSF-19 | 19 | 19 | 76 | 38 | 38 | W-3/4 | 2.5 | 725 | 1000 | 9.80 |
| CSF-22 | 22 | 22 | 88 | 44 | 44 | W-7/8 | 2.5 | 1110 | 1500 | 14.70 |
| CSF-25 | 25 | 25 | 100 | 50 | 50 | W-1 | 2.5 | 1620 | 2000 | 19.60 |
| NEW CSF-28 | 28 | 28 | 112 | 56 | 60 | M-30 | 3.0 | 2445 | 2500 | 24.50 |
| NEW CSF-32 | 35 | 32 | 128 | 64 | 72 | M-36 | 3.0 | 3855 | 3200 | 31.36 |

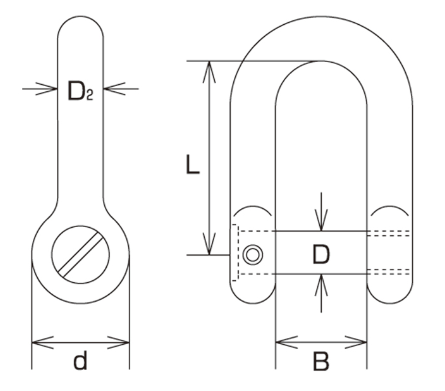

Dimensions (mm)
