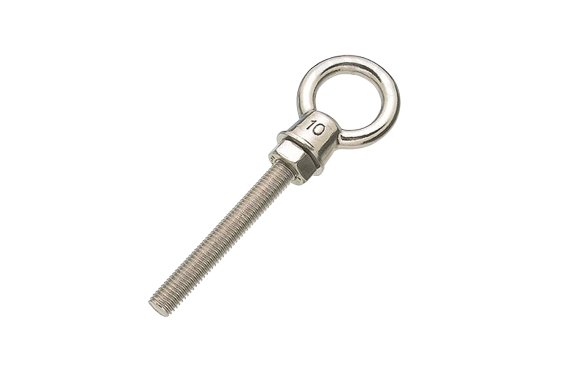

Mizumoto LTK Series K-Type Long Eye Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LTK Series
Features
- Since it is long under the neck, it can be used for thicker parts.
- For general cargo handling, such as lifting machinery and equipment.
Specifications
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| LTK-6M60 | 5.5 | 16 | 31 | 60 | 13 | M-6 | 30 | 50 | 0.49 |
| LTK-8M60 | 7 | 19 | 39 | 60 | 16 | M-8 | 63 | 80 | 0.78 |
| LTK-10M80 | 8 | 24 | 48 | 80 | 20 | M-10 | 118 | 150 | 1.47 |
| LTK-12M100 | 10 | 30 | 60 | 100 | 25 | M-12 | 222 | 220 | 2.16 |
| LTK-16M150 | 13 | 34 | 72 | 150 | 31 | M-16 | 488 | 450 | 4.41 |
*Comes with 1 hex nut and 1 round washer

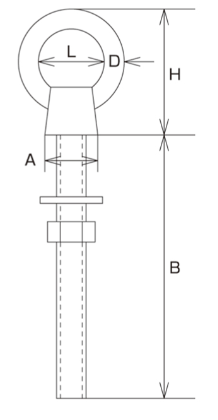

Dimensions (mm)
