Mizumoto Machine Mfg. Co.

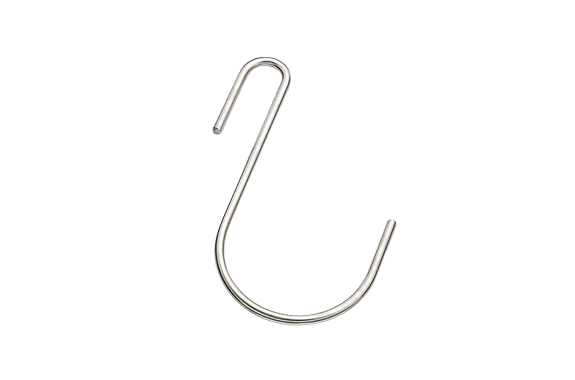

Mizumoto SAH Series S Can
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SAH Series
Features
- It has the shape of a semicircle with one side being thin and one side being large.
- As a hanging bracket for storing general products such as tools and instruments.
Specifications
| Part No. | D | L1 | L2 | S1 | S2 | H1 | H2 | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| SAH-2 | 2 | 60 | 56 | 3.5 | 15 | 22 | 30 | 3.5 | 0.5 | 0.005 |
| SAH-3 | 3 | 82 | 76 | 5 | 20 | 30 | 40 | 10 | 2 | 0.02 |
| SAH-4 | 4 | 110 | 102 | 7 | 25 | 40 | 55 | 23.5 | 2 | 0.02 |

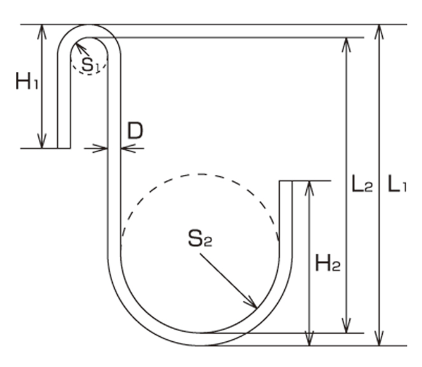

Dimensions (mm)
