Mizumoto Machine Mfg. Co.

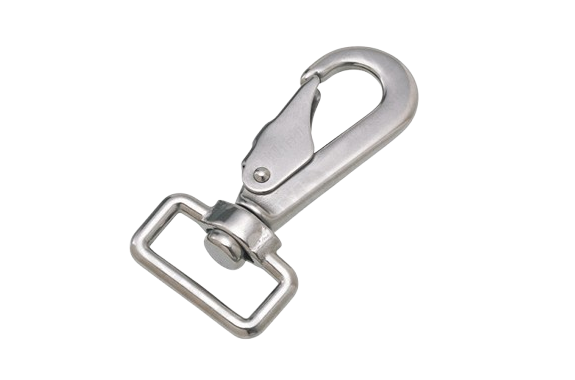

Mizumoto VF Series Swivel Belt Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: VF Series
Features
- There is a straight part on the eye part, which can be connected to a wide belt.
- As a connection bracelet with a belt-like flat object such as rubber or fiber, or as a joint for terminal fittings.
Specifications
| Product No. | D | L | W1 | W2 | S | R | H | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VF-0 | 3 | 52 | 18 | 18 | 6 | 2.5 | 5 | 3 | 16 | 20 | 0.20 |
| VF-1 | 4 | 65 | 23 | 23 | 8 | 3 | 6.5 | 4 | 29 | 30 | 0.29 |
| VF-2 | 5 | 80 | 28 | 28 | 10 | 4 | 7.5 | 4 | 49 | 40 | 0.39 |

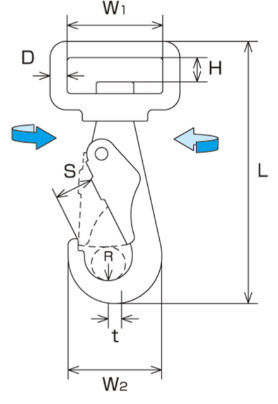

Dimensions (mm)
