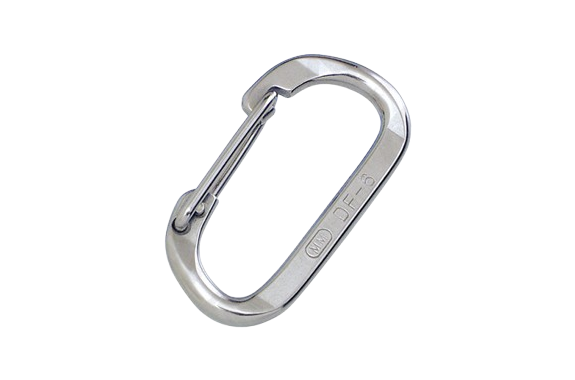

Mizumoto DF Series D-Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: DF Series
Features
- This joint fitting has a large opening and is easy to use.
- It can be opened and closed by folding (pressing) the spring-shaped ring part.
- It is used as a connecting fitting, such as wire, chain, and rope.
Specifications
| Product No. | D1 | D2 | L | W | S | R | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| DF-4 | 4.6 | 4 | 42 | 23 | 9 | 3.5 | 3 | 8 | 20 | 0.20 |
| DF-5 | 5.4 | 5.2 | 52.5 | 23 | 9 | 3.5 | 5 | 16 | 30 | 0.29 |
| DF-6 | 7 | 6 | 64 | 34 | 14 | 5.5 | 4.5 | 29 | 70 | 0.69 |
| DF-8 | 8.7 | 8 | 80 | 45 | 18 | 7.5 | 6 | 49 | 100 | 0.98 |
| DF-10 | 11.5 | 10 | 105 | 58 | 25 | 10 | 7.2 | 133 | 150 | 1.47 |

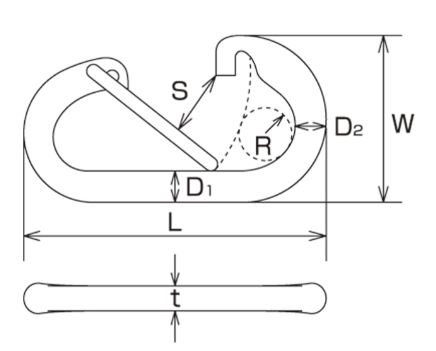

Dimensions (mm)
