Mizumoto Machine Mfg. Co.
Mizumoto MGK Series Mega Carabiner
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MGK Series
Features

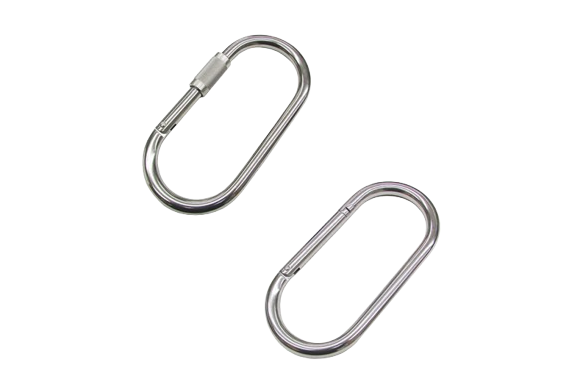

- It is an oval-shaped carabiner that is easy to use on wide objects.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
- It cannot be used as a safety belt.
Specifications
Without Attachments
| Item | D (in) | L (in) | W (in) | S (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|
| NEW MGK-12A | 12 | 145 | 58 | 41 | 340 | 250 | 2.45 |
| NEW MGK-14A | 14 | 176 | 71 | 52 | 564 | 350 | 3.43 |
| NEW MGK-16A | 16 | 197 | 81 | 57 | 833 | 450 | 4.41 |
With Attachments
| Item | D (in) | L (in) | W (in) | S (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|
| NEW MGK-12B | 12 | 145 | 58 | 41 | 377 | 300 | 2.94 |
| NEW MGK-14B | 14 | 176 | 71 | 52 | 610 | 400 | 3.92 |
| NEW MGK-16B | 16 | 197 | 81 | 57 | 879 | 500 | 4.90 |

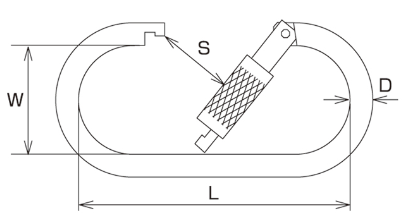

Dimensions (mm)
