Mizumoto Machine Mfg. Co.

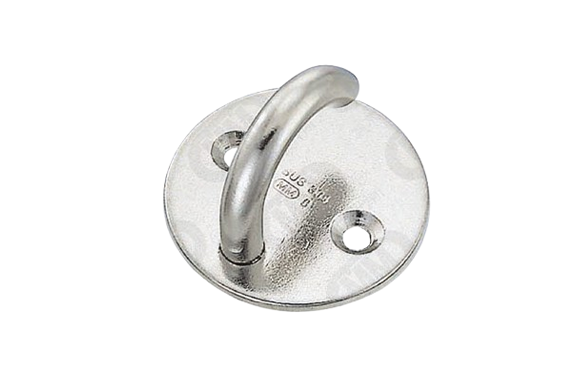

Mizumoto ORI Series Open Round Eye
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: ORI Series
Features
- Please use the screws on the countersunk head.
- The seat part is circular. Attach it to a post or wall.
Specifications
| Model | D | A1 | A2 | H | h | S | d | T | Weight (kg) | Reference Load (kef) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ORI-5 | 5 | 33 | 19 | 20 | 12.5 | 10 | 4.2 | 2.5 | 21 | 10 | 0.10 |
| ORI-6 | 6 | 40 | 23 | 26 | 17.5 | 13 | 5.2 | 2.5 | 32 | 15 | 0.15 |
| ORI-8 | 8 | 50 | 29 | 33 | 22 | 16 | 5.2 | 3 | 62 | 20 | 0.20 |

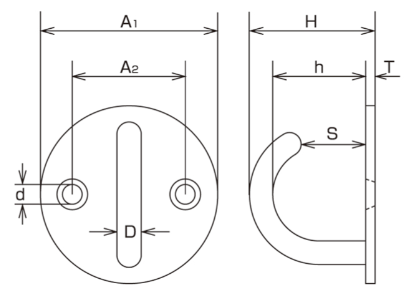

Dimensions (mm)
