Mizumoto Machine Mfg. Co.

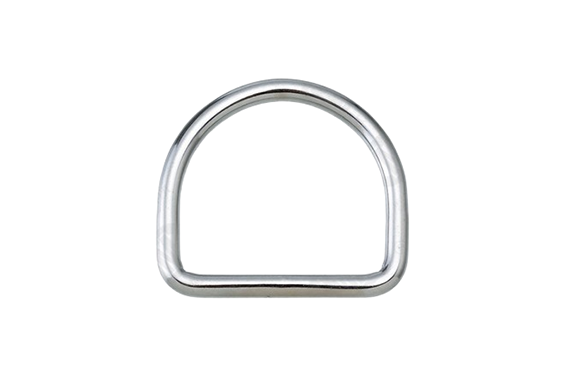

Mizumoto RD Series D-Link
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RD Series
Features
- It is welded.
- As a metal fittings for bags and clothes.
Specifications
| Part No. | D (mm) | A (mm) | B (mm) | Weight (g) | Reference Working Load | Price (JPY / pc) | Packing Unit | ||
| (kgf) | (kN) | Incl. Tax | Excl. Tax | ||||||
| RD-3-15 | 3 | 15 | 12 | 3 | 20 | 0.20 | 209 | 190 | 20 |
| RD-3-20 | 3 | 20 | 17 | 4 | 20 | 0.20 | 220 | 200 | 20 |
| RD-3-25 | 3 | 25 | 22 | 5 | 20 | 0.20 | 231 | 210 | 20 |
| RD-4-20 | 4 | 20 | 17 | 8 | 40 | 0.39 | 297 | 270 | 20 |
| RD-4-25 | 4 | 25 | 22 | 9 | 40 | 0.39 | 330 | 300 | 20 |
| RD-4-30 | 4 | 30 | 27 | 10 | 40 | 0.39 | 341 | 310 | 20 |
| RD-4-35 | 4 | 35 | 32 | 12 | 40 | 0.39 | 374 | 340 | 20 |
| RD-5-25 | 5 | 25 | 22 | 14 | 60 | 0.59 | 451 | 410 | 20 |
| RD-5-30 | 5 | 30 | 27 | 16 | 60 | 0.59 | 495 | 450 | 20 |
| RD-5-35 | 5 | 35 | 32 | 19 | 60 | 0.59 | 539 | 490 | 20 |
| RD-5-40 | 5 | 40 | 37 | 23 | 60 | 0.59 | 572 | 520 | 20 |
| RD-5-45 | 5 | 45 | 42 | 24 | 60 | 0.59 | 605 | 550 | 20 |
| RD-5-50 | 5 | 50 | 43 | 27 | 60 | 0.59 | 649 | 590 | 20 |
| RD-6-45 | 6 | 45 | 42 | 38 | 80 | 0.78 | 1,001 | 910 | 20 |
| RD-6-50 | 6 | 50 | 47 | 43 | 80 | 0.78 | 1,078 | 980 | 20 |
| RD-6-55 | 6 | 55 | 52 | 46 | 80 | 0.78 | 1,177 | 1,070 | 20 |

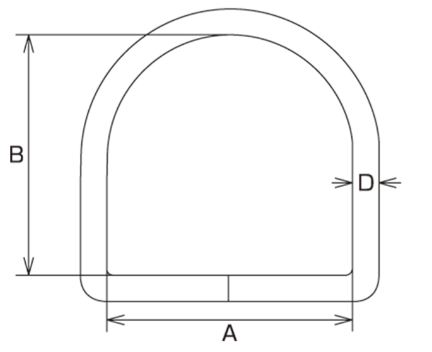

Dimensions (mm)
