Mizumoto Machine Mfg. Co.

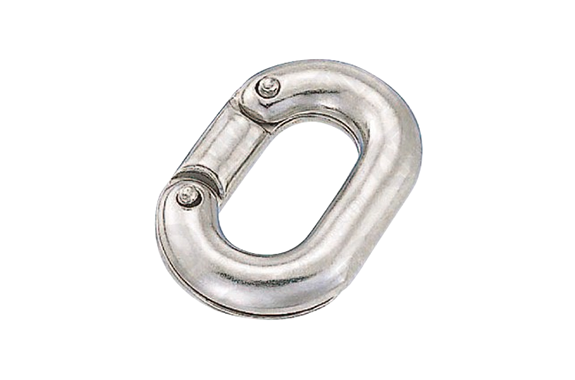

Mizumoto CN Series Connecting Rings
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: CN Series
Features
- It is a type that firmly hammers the protruding part of four places on both sides with a hammer.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Part No. | D | L | W | Weight (g) | Reference Load Capacity | |
| (kgf) | (kN) | |||||
| CN-5 | 5 | 17.5 | 8.5 | 10 | 80 | 0.78 |
| CN-6 | 6 | 21 | 10 | 16 | 140 | 1.37 |
| CN-8 | 8 | 24 | 12 | 35 | 200 | 1.96 |
| CN-10 | 10 | 30 | 14.5 | 60 | 300 | 2.94 |
| CN-11 | 11 | 33 | 17 | 86 | 400 | 3.92 |
| CN-13 | 13 | 37 | 19 | 128 | 550 | 5.39 |
| CN-16 | 16 | 48 | 24 | 259 | 800 | 7.84 |

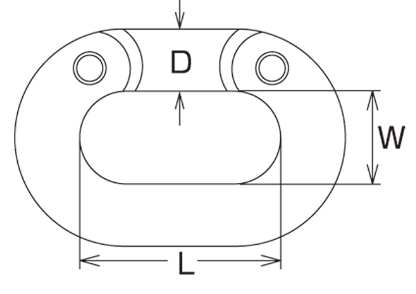

Dimensions (mm)
