Mizumoto Machine Mfg. Co.

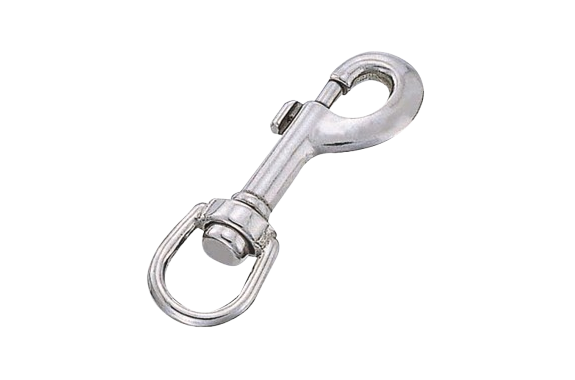

Mizumoto N Series Nascan
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: N Series
Features
- The eye part rotates, so it doesn’t get tangled when connected.
- It opens with one touch, so you can easily join it.
- It is often used for pet mooring chains.
Specifications
| Product No. | D | L | W | S | H | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| N-S1 | 2.5 | 50 | 13 | 5 | 8 | 7 | 3.5 | 10 | 15 | 0.15 |
| N-0 | 3 | 64 | 17 | 6 | 9 | 10 | 4 | 22 | 20 | 0.20 |
| N-1 | 4 | 79 | 20 | 7 | 13 | 14 | 5 | 33 | 30 | 0.29 |
| N-2 | 4.4 | 91 | 24 | 8 | 15 | 16 | 7 | 51 | 40 | 0.39 |
| N-2.5 | 6 | 110 | 30 | 11 | 14 | 16 | 7.5 | 91 | 40 | 0.39 |
| N-3 | 7 | 123 | 32 | 13 | 28 | 35 | 7.5 | 123 | 50 | 0.49 |

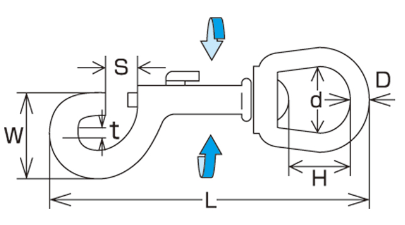

Dimensions (mm)
