Mizumoto Machine Mfg. Co.

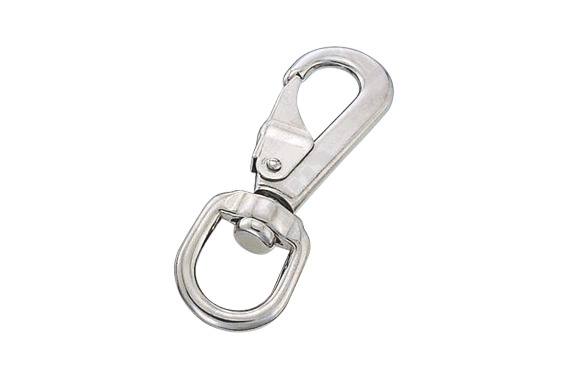

Mizumoto F Series Ice Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: F Series
Features
- The eye part rotates, so it becomes a chain attachment.
- You can easily open and close it with a spring hook.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | D | L | W | S | R | H | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F-0 | 3 | 57 | 18 | 6.5 | 2.5 | 10 | 11 | 3 | 17 | 20 | 0.20 |
| F-1 | 4 | 71 | 23 | 8 | 3 | 12 | 14 | 4 | 30 | 30 | 0.29 |
| F-1.5 | 4 | 87 | 28 | 10 | 4 | 14 | 16 | 4 | 46 | 30 | 0.29 |
| F-2 | 5 | 90 | 28 | 10 | 4 | 17 | 18 | 4 | 49 | 40 | 0.39 |

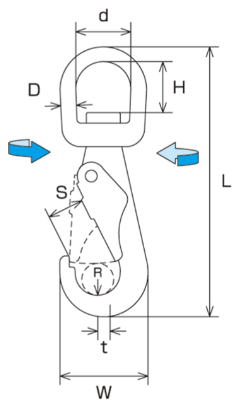

Dimensions (mm)
