Mizumoto Machine Mfg. Co.

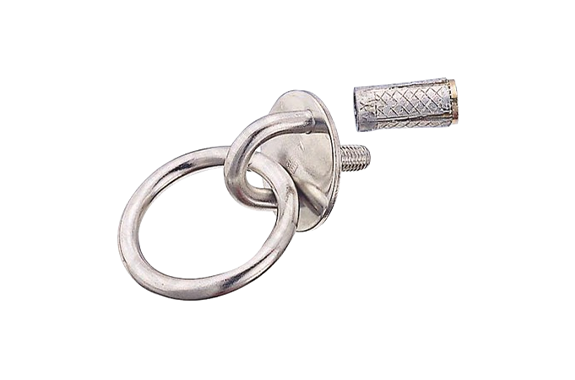

Mizumoto RBR Series Round Eye Round Can With Screws
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RBR Series
Features
- It has an anchor plug.
- It comes with a round can, so it is easy to pass thick ropes through it.
- The seat part is circular.
- It is installed on walls, floors, columns, etc., and is used as terminal fittings such as chains.
Specifications
| Model | D | L | A | H | B | T | Drill Diameter | Weight (kg) | Reference Load (kef) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| RBR-5 | 5 | 30 | 33 | 19 | 21 | 2.5 | M-6 | 11 | 51 | 0.15 |
| RBR-6 | 6 | 40 | 40 | 25.5 | 25 | 2.5 | M-8 | 14 | 92 | 0.20 |
| RBR-8 | 8 | 50 | 50 | 32 | 27 | 3 | M-10 | 18 | 184 | 0.29 |

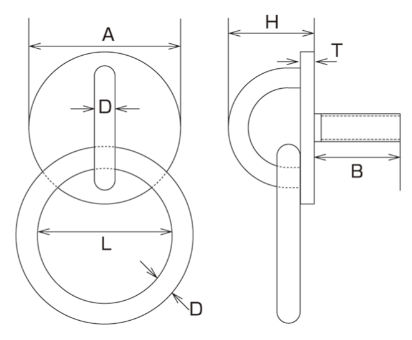

Dimensions (mm)
