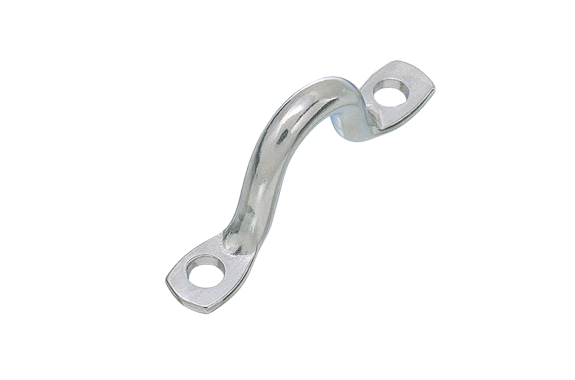

Mizumoto ISB Series Eye Strap Without Counterbite Type
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: ISB Series
Features
- It can be installed even on a narrow side of the installation width.
- Since it is a counterbore type, please use screws such as a nabe head.
- Attach it to a post or wall.
Specifications
| Item Number | D (Diameter) | L1 (Length 1) | L2 (Length 2) | L3 (Length 3) | H (Height) | h (Height) | d | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| ISB-6 | 6 | 58 | 45 | 15 | 22 | 16 | 5.2 | 14 | 20 | 0.20 |
| ISB-8 | 8 | 63 | 47 | 12 | 25 | 17 | 6 | 27 | 30 | 0.29 |

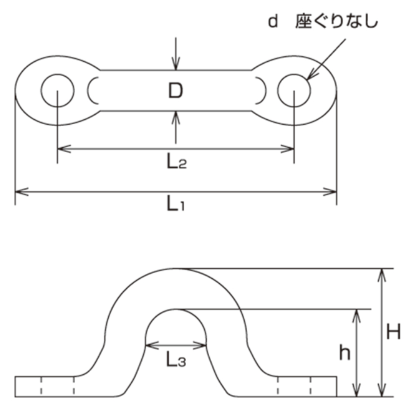

Dimensions (mm)
