Mizumoto Machine Mfg. Co.

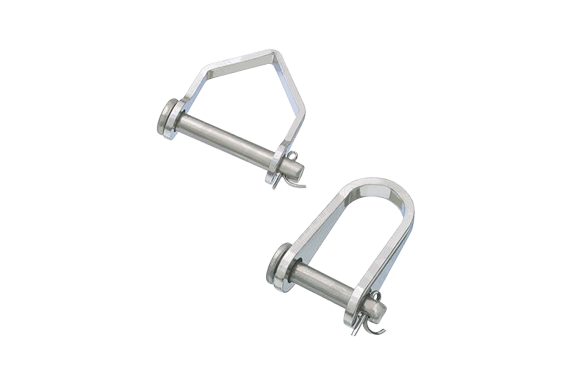

Mizumoto YSA/ YSB Series Seat Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YSA/ YSB Series
Features
- Since it is a wari pin stopper, there is no risk of the pin loosening due to vibration.
- As a connecting fitting such as chain, wire, rope, etc., and as a joint for terminal fittings.
- In particular, there is a lot of vibration, and the pin may loosen with a normal shackle.
Specifications
| Product Number | D | L | B | d | t | F | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| YSA-1 | 5 | 28 | 25 | 11 | 2 | 4.5 | 12 | 10 | 0.10 |
| YSA-2 | 5 | 33 | 25 | 11 | 2 | 4.5 | 13 | 10 | 0.10 |
| YSB-1 | 5 | 30 | 16 | 11 | 2 | 4.5 | 11 | 20 | 0.20 |
| YSB-2 | 6 | 36 | 18 | 14 | 3 | 6 | 26 | 60 | 0.59 |

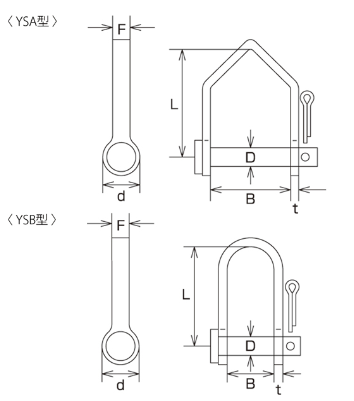

Dimensions (mm)
