Mizumoto Machine Mfg. Co.

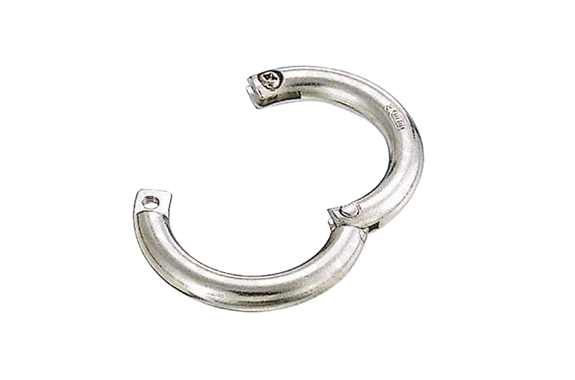

Mizumoto HC Series Heavy Chain Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HC Series
Features
- This is a type that tightens the screws with a Phillips screwdriver. You can also reopen it.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Part No. | D | L | Weight (g) | Reference Load Capacity | |
| (kgf) | (kN) | ||||
| HC-5 | 5 | 25 | 14 | 30 | 0.29 |
| HC-6 | 6 | 30 | 25 | 50 | 0.49 |
| HC-8 | 8 | 35 | 53 | 80 | 0.78 |
| HC-9 | 9 | 40 | 76 | 100 | 0.98 |
*The screws may become loose. Please conduct an inspection.
*Do not use when hanging slings or other objects.

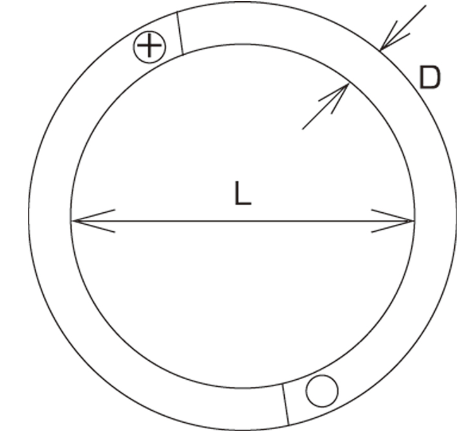

Dimensions (mm)
