Mizumoto Machine Mfg. Co.

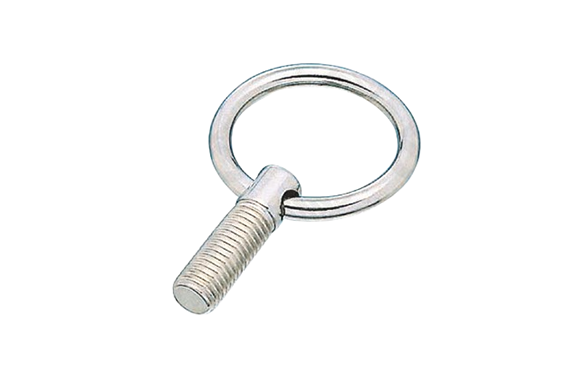

Mizumoto LB Series Ring Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LB Series
Features
- When not in use, the circular link will fall over, so it will not get in the way.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
Metric Thread
| Item Number | D | L | H | A | B | Thread | Weight (g) | Reference Weight (kgf) | Reference Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|
| LN-6M | 5 | 35 | 26 | 10 | 20 | M-6 | 34 | 50 | 0.49 |
| LN-8M | 6 | 40 | 35 | 12 | 16 | M-8 | 59 | 80 | 0.78 |
| LN-10M | 8 | 45 | 45 | 13 | 27 | M-10 | 99 | 120 | 1.18 |
| LN-12M | 9 | 50 | 40 | 16 | 32 | M-12 | 138 | 180 | 1.76 |

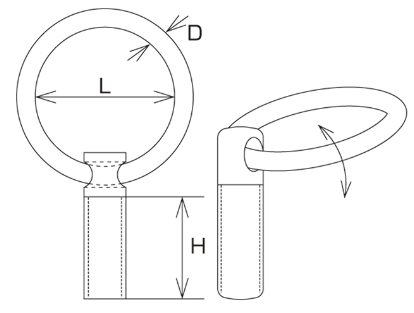

Dimensions (mm)
