Mizumoto Machine Mfg. Co.

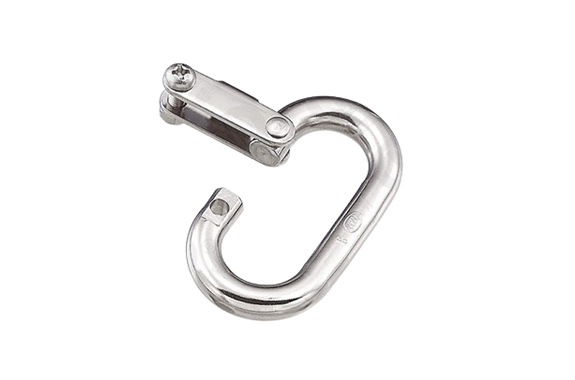

Mizumoto OCC Series Oval Catch Type C
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: OCC Series
Features
- It comes with an anti-loosening nut, so you can rest assured that the hook will not open carelessly.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Part No. | D | S | L | B | Wrench Size | Weight (g) | Reference Load Capacity | |
| (kgf) | (kN) | |||||||
| OC-6 | 6 | 15 | 40 | 15.5 | 1.5 | 26 | 100 | 0.98 |
| OC-8 | 8 | 17 | 54 | 20 | 2 | 58 | 150 | 1.47 |
| OC-10 | 10 | 23 | 70 | 26 | 2.5 | 123 | 200 | 1.96 |

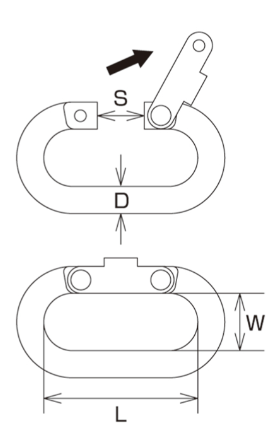

Dimensions (mm)
