Mizumoto Machine Mfg. Co.

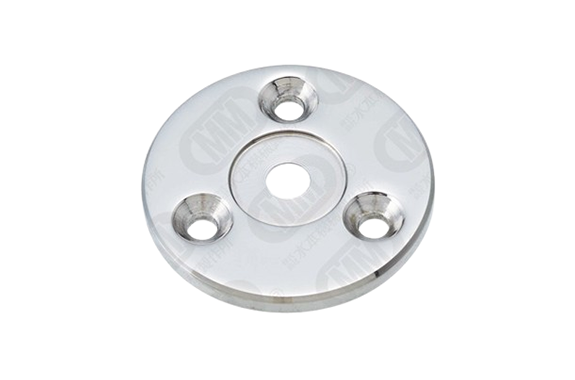

Mizumoto HOF Series Single-Sided Door Handle Washer
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HOF Series
Features
- It has a beautiful mirror finish with a stainless steel texture.
- This is a metal fitting for the front of a single-sided door handle.
- Mirror finish on surface only
Specifications
| Item No. | L1 | L2 | d1 | d2 | T | Weight (g) | Suitable Pipe | Mounting Bolt (d1) |
|---|---|---|---|---|---|---|---|---|
| HOF-16 | 42 | 28 | 6 | 4 | 4 | 72 | φ16 | M5×10 |
| HOF-19 | 46 | 32 | 7 | 4 | 4 | 84 | φ19 | M6×20 |
| HOF-22 | 49 | 35 | 7 | 4.2 | 4 | 98 | φ22 | M6×20 |
| HOF-25 | 53 | 39 | 7.2 | 4.2 | 4 | 116 | φ25 | M6×20 |
| HOF-32 | 64 | 48 | 9.5 | 5.2 | 5 | 218 | φ32 | M8×20 |
*It comes in a pack of 2 pieces per bag.

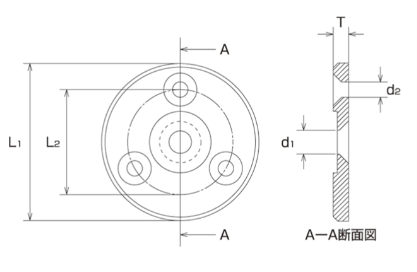

Dimensions (mm)
