Mizumoto Machine Mfg. Co.

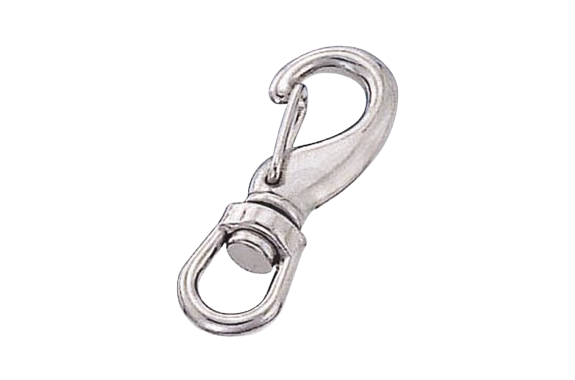

Mizumoto MS Series Magatamas Ibel
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MS Series
Features
- The eye part rotates with a swivel, so the chain is not entangled.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | D | L | W | S | R | H | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS-0 | 3 | 57 | 20 | 5 | 2 | 10 | 10 | 5 | 20 | 20 | 0.20 |

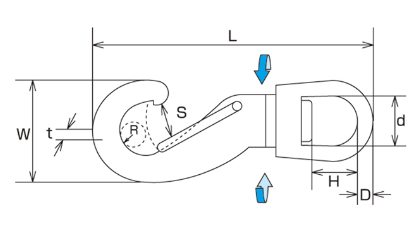

Dimensions (mm)
