Mizumoto Machine Mfg. Co.

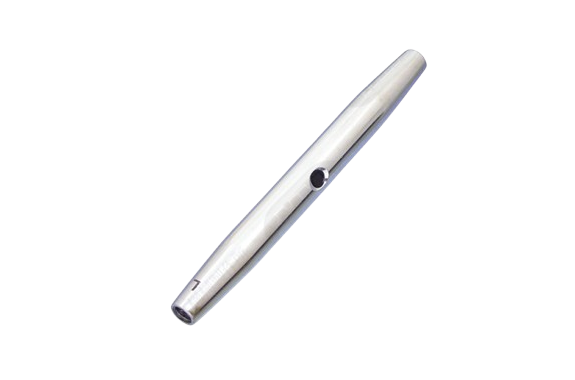

Mizumoto TBP-W Series Pipe Turnbuckle Pipe Only
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TBP-W Series
Features
- Only pipes with pipe turnbuckles.
- The hooks can be rearranged and used.
- Unlike the frame type, it is a pipe type and the screw part is not exposed, so it is more decorative.
- To adjust the tension of the wire rope.
Specifications
Whitworth Thread
| Model | L | Thread Size |
| TBP-4W | 80 | W-3/16 |
| TBP-5W | 80 | W-3/16 |
| TBP-6W | 100 | W-1/4 |
| TBP-8W | 129 | W-5/16 |
| TBP-9W | 157 | W-3/8 |
| TBP-12W | 200 | W-1/2 |
| TBP-16W | 250 | W-5/8 |
*It is also possible to sell only the hook of the turnbuckle separately.

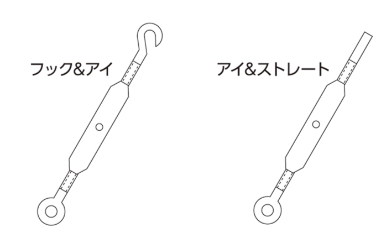

*Recombinations of hooks, eyes, straights, etc. are also possible.
*Please inquire about combinations that can be recombined.
Dimensions (mm)
