Mizumoto Machine Mfg. Co.

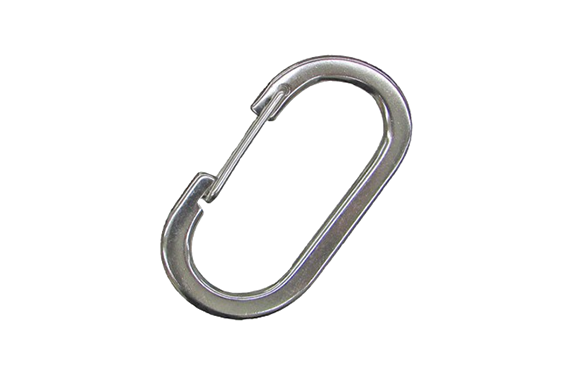

Mizumoto MOS Series Power O-Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MOS Series
Features
- It has a simple shape and is highly durable.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
Specifications
| Item | D (in) | L (in) | W (in) | S (in) | R (in) | t (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|
| NEW MOS-3 | 3.5 | 22 | 8 | 5.5 | 2 | 2 | 3 | 15 | 0.15 |
| NEW MOS-4 | 4.5 | 30 | 10 | 7 | 3.5 | 3 | 7.5 | 25 | 0.25 |
| NEW MOS-5 | 5.5 | 41 | 16 | 11 | 4.5 | 4 | 16 | 30 | 0.29 |
| NEW MOS-6 | 6.5 | 52 | 21 | 15 | 7 | 5 | 29 | 35 | 0.34 |
| NEW MOS-8 | 8.5 | 57 | 22 | 16 | 8 | 7 | 57 | 55 | 0.54 |
| NEW MOS-10 | 10.5 | 61 | 24 | 18 | 7 | 9 | 99 | 120 | 1.18 |

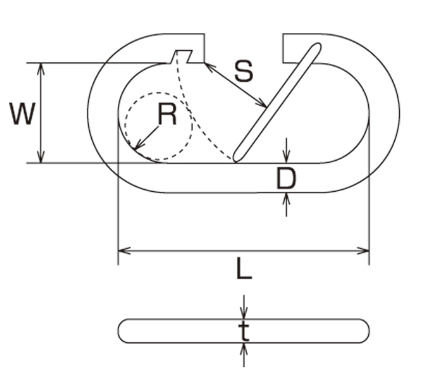

Dimensions (mm)
