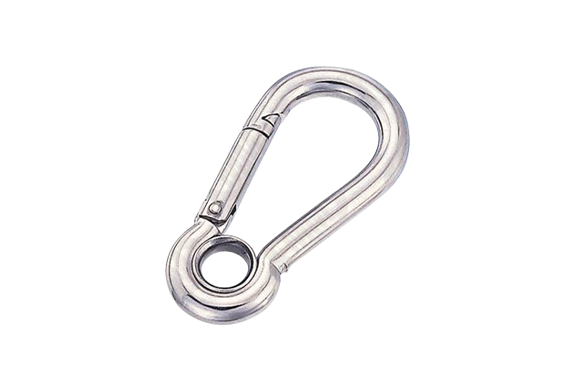

Mizumoto A Series Snap Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: A Series
Features
- It has a ring to prevent tangling.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Item No. | D | L | W | S | d | Weight (g) | Max Load (kgf) | Max Load (kN) |
|---|---|---|---|---|---|---|---|---|
| A-3S | 3 | 38 | 19 | 6 | 5 | 5 | 10 | 0.10 |
| A-4 | 4 | 45 | 22 | 7 | 5.5 | 9 | 30 | 0.29 |
| A-5 | 5 | 53 | 26 | 7 | 6 | 18 | 60 | 0.59 |
| A-6 | 6 | 61 | 31.5 | 9.5 | 7.5 | 29 | 80 | 0.78 |
| A-7 | 7 | 70 | 36 | 9.5 | 8 | 46 | 100 | 0.98 |
| A-8 | 8 | 80 | 40 | 11 | 10 | 60 | 120 | 1.18 |
| A-10 | 10 | 102 | 50 | 13 | 14 | 132 | 150 | 1.47 |
| A-11 | 11 | 120 | 60 | 16 | 16 | 193 | 200 | 1.96 |
| A-12 | 12 | 140 | 68 | 21 | 16 | 265 | 250 | 2.45 |

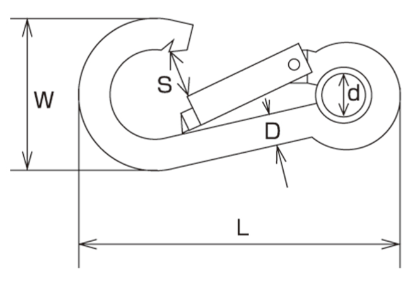

Dimensions (mm)
