Mizumoto Machine Mfg. Co.

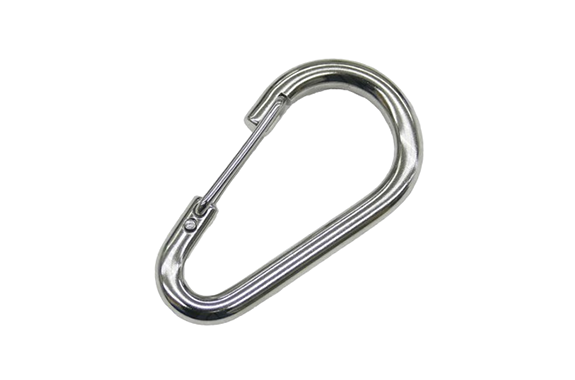

Mizumoto EPH Series Eggplant Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: EPH Series
Features
- It is made of stainless steel, rust-resistant, and durable.
- The opening part is returned by the force of the spring.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Item | D (in) | L (in) | W (in) | S (in) | R (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|---|
| NEW EPH-3 | 3 | 38 | 20 | 7 | 3 | 4 | 5 | 0.05 |
| NEW EPH-4 | 4 | 45 | 24 | 9 | 4 | 9 | 15 | 0.15 |
| NEW EPH-5 | 5 | 54 | 27 | 9 | 4 | 16 | 20 | 0.20 |
| NEW EPH-6 | 6 | 63 | 34 | 12 | 5.5 | 28 | 30 | 0.29 |
| NEW EPH-8 | 8 | 81 | 41 | 15 | 7.5 | 61 | 75 | 0.74 |
| NEW EPH-10 | 10 | 101 | 51 | 19 | 9.5 | 123 | 135 | 1.32 |

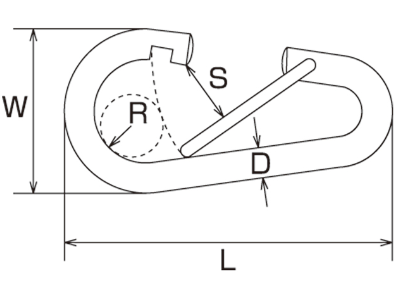

Dimensions (mm)
