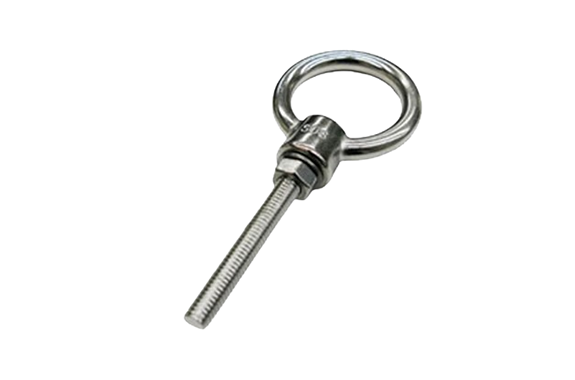

Mizumoto LTKB Series K-Type Long Big Eye Bolt (Cast)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LTKB Series
Features
- The eye is twice as large as the conventional eye bolt.
- The neck is long, so it can be used on thicker areas. For general cargo handling, such as lifting machinery and equipment.
Specification
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| NEW LTKB-6M60 | 6 | 32 | 50 | 60 | 16 | M-6 | 53 | 35 | 0.34 |
| NEW LTKB-8M60 | 8 | 38 | 62 | 60 | 20 | M-8 | 110 | 60 | 0.59 |
| NEW LTKB-10M80 | 10 | 50 | 80 | 80 | 25 | M-10 | 220 | 100 | 0.98 |
| NEW LTKB-12M100 | 12 | 60 | 98 | 100 | 32 | M-12 | 383 | 150 | 1.47 |
| NEW LTKB-16M150 | 16 | 68 | 115 | 150 | 39 | M-16 | 813 | 350 | 3.43 |

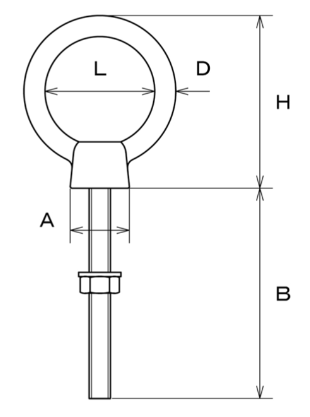

Dimensions (mm)
