Mizumoto Machine Mfg. Co.

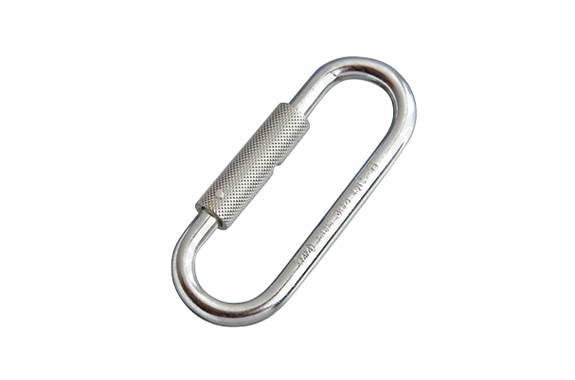

Mizumoto QC Series Quick Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: QC Series
Features
- It is not a screw type, but a sliding type that uses the force of a spring, which is resistant to vibration and improves workability.
- As connecting fittings and hanging fittings such as chains, ropes, and wires.
- It is particularly suitable for use in areas with high vibrations.
Specifications
| Part No. | D | L | B1 | B2 | S | Weight (g) | Reference Working Load (kgf) | (kN) |
| GC-3 | 3 | 36 | 9 | 7.5 | 5 | 7 | 5 | 0.05 |
| GC-4 | 4 | 48 | 13 | 12 | 6.5 | 15 | 10 | 0.1 |
| GC-5 | 5 | 60 | 15 | 14 | 8 | 25 | 15 | 0.15 |
| GC-6 | 6 | 70 | 18.5 | 17 | 9 | 46 | 30 | 0.29 |
| GC-8 | 8 | 93 | 26 | 24 | 13 | 100 | 40 | 0.39 |

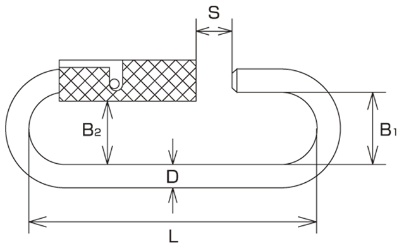

Dimensions (mm)
