Mizumoto Machine Mfg. Co.

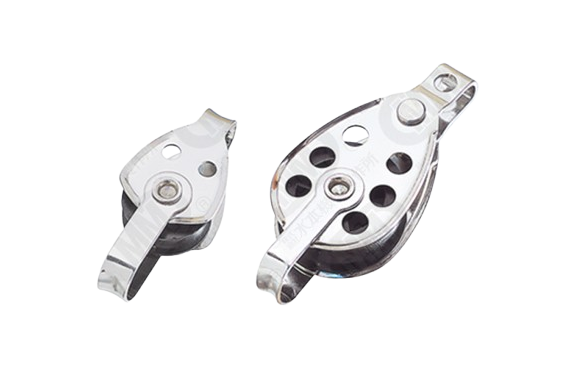

Mizumoto PBK Series Pulley Block (with Beke)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PBK Series
Features
- It is a small and lightweight pulley. It is used for lifting and pulling loads through ropes.
Specifications
| Model | Wheel Diameter | Number of Wheels | Wheel Groove Width | L | W | d | Applicable Rope Diameter | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| PBK-25 | 25 | 1 | 7.5 | 64 | 28.5 | 10 | φ5–φ7 | 27 | 30 | 0.29 |
| PBK-35 | 35 | 1 | 9.5 | 87 | 37 | 6 | φ8–φ10 | 52 | 50 | 0.49 |

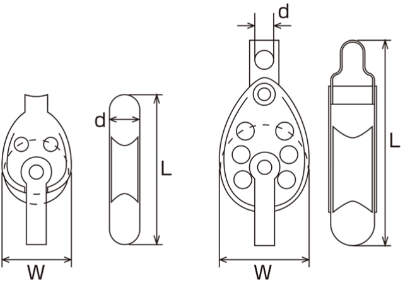

Dimensions (mm)
