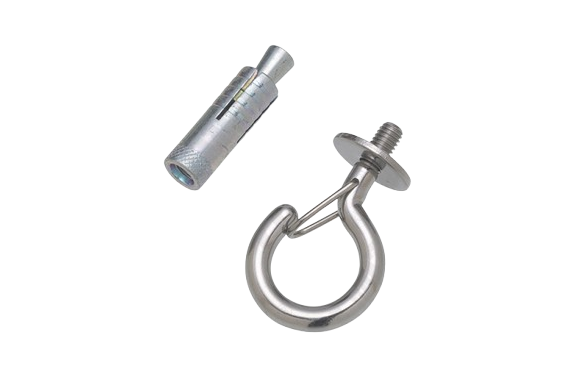

Mizumoto EHB Series Bolt Hook With Cut Anchor
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: EHB Series
Features
- Since it is equipped with a slip stop, it is difficult for hanging items to come off carelessly.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
| Product Number | D | L | L1 | B | W | S | A | T | Thread Size | Drill Diameter | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| EHB-5 | 5.5 | 45 | 33 | 12 | 15 | 8 | 12 | 2 | M-6 | 11 | 33 | 18 | 0.18 |
| EHB-6 | 6 | 52 | 40 | 12 | 19 | 8.5 | 20 | 2 | M-6 | 11 | 41 | 20 | 0.20 |
| EHB-8 | 8 | 65 | 50 | 15 | 24 | 13 | 22 | 2 | M-8 | 12.5 | 74 | 60 | 0.59 |
| EHB-10 | 10 | 80 | 62 | 18 | 32 | 16 | 22 | 2 | M-10 | 14.5 | 129 | 120 | 1.18 |
| Product Number | D | L | L1 | B | W | S | A | T | Thread Size | Drill Diameter | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| EHB-5W | 5.5 | 45 | 33 | 12 | 15 | 8 | 12 | 2 | W-1/4 | 11 | 33 | 18 | 0.18 |
| EHB-6W | 6 | 52 | 40 | 12 | 19 | 8.5 | 20 | 2 | W-1/4 | 11 | 41 | 20 | 0.20 |
| EHB-8W | 8 | 65 | 50 | 15 | 24 | 13 | 22 | 2 | W-5/16 | 12.5 | 74 | 60 | 0.59 |
| EHB-10W | 10 | 80 | 62 | 18 | 32 | 16 | 22 | 2 | W-3/8 | 14.5 | 129 | 120 | 1.18 |

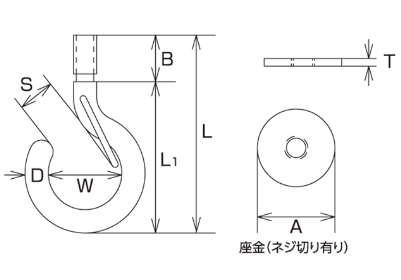

Dimensions (mm)
