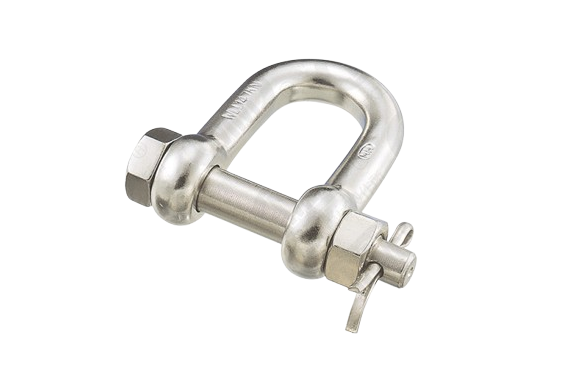

Mizumoto SBM Series Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SBM Series
Features
- Since it has a wari pin, it is difficult for the nut to come off.
- For connecting chains, wires, ropes, etc., and for joints of terminal fittings.
- Especially in places where the pins may loosen with a normal shackle due to a lot of vibration.
- With nut and waripin
Specifications
| Product Number | D | L | B | d | t | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SBM-6 | 6 | 24 | 12 | 12 | 6 | M-6 | 29 | 180 | 1.76 |
| SBM-7 | 8 | 28 | 14 | 14 | 7 | M-8 | 51 | 250 | 2.45 |
| SBM-8 | 8 | 32 | 16 | 16 | 8 | M-8 | 72 | 300 | 2.94 |
| SBM-9 | 10 | 36 | 18 | 18 | 9 | M-10 | 110 | 400 | 3.92 |
| SBM-10 | 10 | 40 | 20 | 20 | 10 | M-10 | 135 | 600 | 5.88 |
| SBM-12 | 12 | 48 | 24 | 24 | 12 | M-12 | 230 | 750 | 7.35 |
| SBM-13 | 14 | 52 | 26 | 26 | 13 | M-14 | 310 | 900 | 8.82 |
| SBM-15 | 16 | 60 | 30 | 30 | 15 | M-16 | 450 | 1200 | 11.76 |
| SBM-16 | 16 | 64 | 32 | 32 | 16 | M-16 | 528 | 1500 | 14.70 |
| SBM-19 | 20 | 76 | 38 | 38 | 19 | M-20 | 994 | 2000 | 19.60 |
| SBM-22 | 22 | 88 | 44 | 44 | 22 | M-22 | 1350 | 2500 | 24.50 |
| SBM-25 | 25 | 100 | 50 | 50 | 25 | M-24 | 1930 | 3200 | 31.36 |
| SBM-28 | 28 | 112 | 56 | 60 | 28 | M-30 | 3040 | 4000 | 39.20 |
| SBM-32 | 35 | 134 | 64 | 72 | 32 | M-36 | 5040 | 5000 | 49.00 |

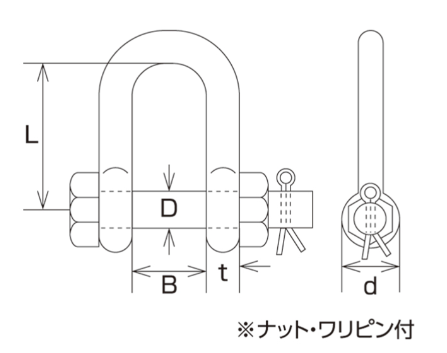

Dimensions (mm)
