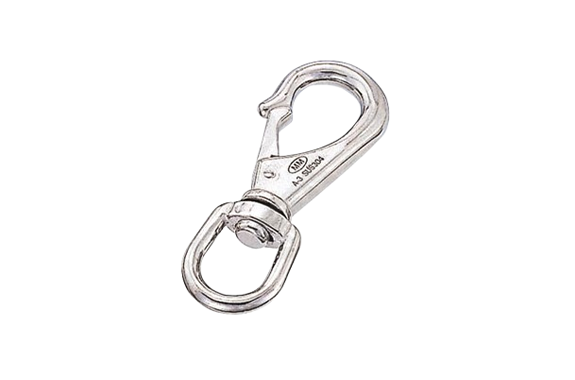

Mizumoto A Series Swivel Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: A Series
Features
- The eye part rotates with a swivel, so the chain does not get tangled.
- You can easily open and close it with a spring hook.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings. For chains, etc.
Specifications
| Product No. | D | L | W | S | H | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| A-S1 | 2.5 | 37 | 15 | 4 | 7 | 8 | 3.5 | 9 | 5 | 0.05 |
| A-0 | 4 | 66 | 22 | 5 | 12 | 13 | 6 | 34 | 20 | 0.2 |
| A-1 | 5 | 85 | 28 | 9 | 19 | 19 | 6 | 58 | 30 | 0.29 |
| A-2 | 5 | 98 | 38 | 12 | 20.5 | 7.5 | 91 | 40 | 0.39 | |
| A-3 | 7 | 118 | 46 | 14 | 23 | 23 | 10 | 151 | 50 | 0.49 |

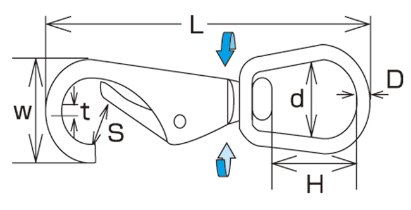

Dimensions (mm)
