Mizumoto Machine Mfg. Co.

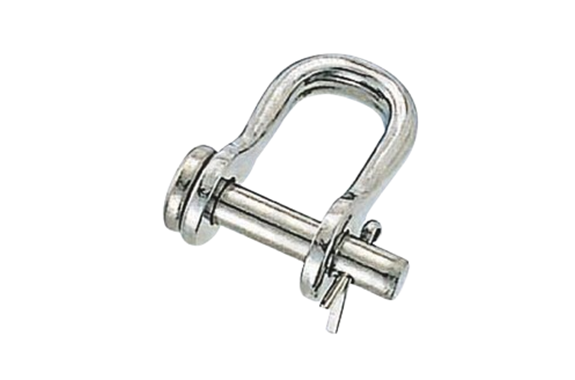

Mizumoto RSW Series Waripin Semi-Round Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RSW Series
Features
- Since it is a wari pin stopper, there is no risk of the pin loosening due to vibration.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
- In particular, there is a lot of vibration, and the pin may loosen with a normal shackle.
Specifications
| Product Number | D | L | B | d | t | F | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| RSW-5 | 5 | 21 | 12 | 12 | 2.4 | 5.4 | 15 | 90 | 0.88 |
| RSW-6 | 6 | 25 | 14 | 14 | 3 | 6.4 | 23 | 120 | 1.18 |
| RSW-8 | 8 | 33 | 17 | 17 | 4 | 7.5 | 45 | 200 | 1.96 |

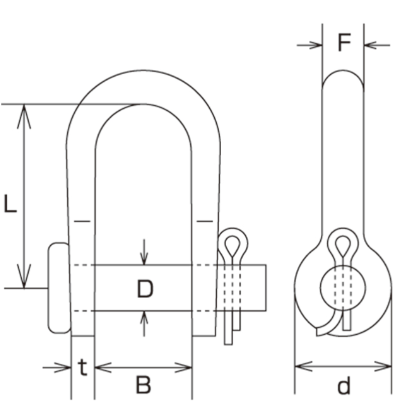

Dimensions (mm)
