Mizumoto Machine Mfg. Co.

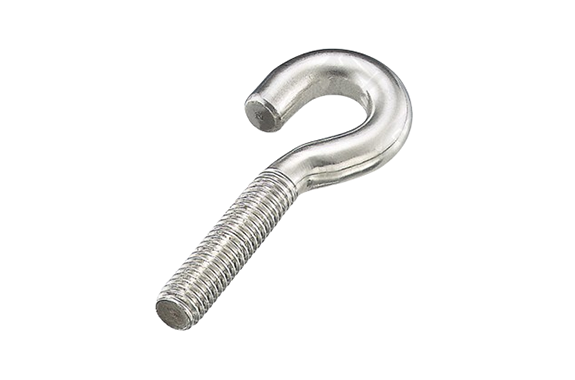

Mizumoto QP Series Q Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: QP Series
Features
- It can be used in combination with threaded washer W-6M20T.
- It can be installed on walls, floors, columns, etc., and used as terminal fittings for chains, wires, and ropes.
Specifications
| Product Number | D | L | B | W | S | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| QP-6 | 6 | 47.5 | 25 | 8 | 4.5 | M-6 | 12 | 20 | 0.20 |

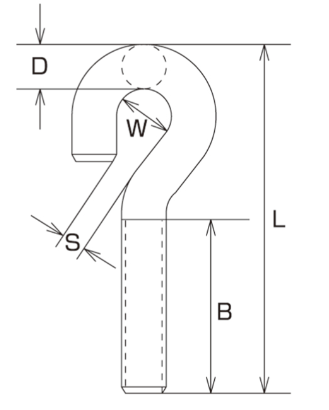

Dimensions (mm)
