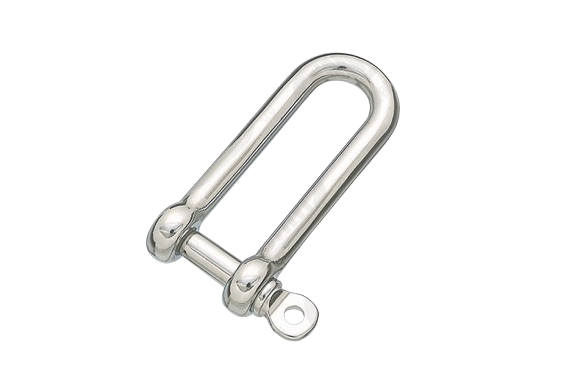

Mizumoto SPL Series Long Screw Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SPL Series
Features
- The L dimension is twice as long as a conventional shackle, so it can be used for a wide range of purposes.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
Specifications
| Product Number | D | L | B | d | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SPL-4 | 4 | 32 | 8 | 8 | M-4 | 11 | 50 | 0.49 |
| SPL-5 | 5 | 40 | 10 | 10 | M-5 | 20 | 90 | 0.88 |
| SPL-6 | 6 | 48 | 12 | 12 | M-6 | 34 | 170 | 1.67 |
| SPL-8 | 8 | 64 | 16 | 16 | W-5/16 | 82 | 250 | 2.45 |
| SPL-10 | 10 | 80 | 20 | 20 | W-3/8 | 160 | 350 | 3.43 |
| SPL-12 | 12 | 96 | 24 | 24 | W-1/2 | 275 | 420 | 4.12 |
*Only the SPL-4 has no holes in the knob part of the pin.

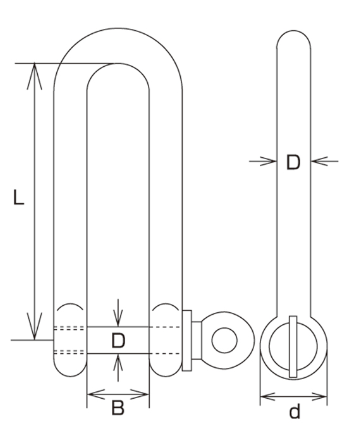

Dimensions (mm)
