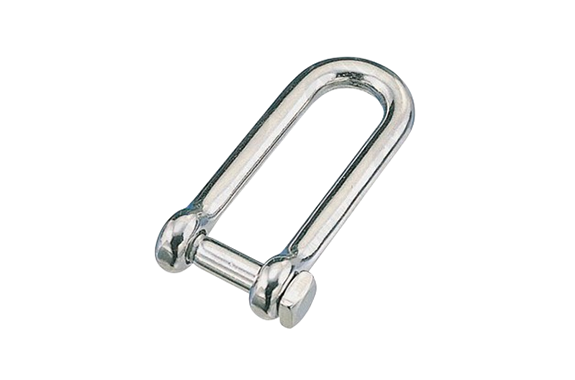

Mizumoto QSL Series Long Square Head Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: QSL Series
Features
- The L dimension is twice as long as a conventional shackle, so it can be used for a wide range of applications.
- As a connecting fittings such as chains, wires, and ropes, and as joints for terminal fittings.
Specifications
| Product Number | D | L | B | d | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| QSL-4 | 4 | 32 | 8 | 8 | M-4 | 10 | 50 | 0.49 |
| QSL-5 | 5 | 40 | 10 | 10 | M-5 | 20 | 90 | 0.88 |
| QSL-6 | 6 | 48 | 12 | 12 | M-6 | 33 | 170 | 1.67 |
| QSL-8 | 8 | 64 | 16 | 16 | W-5/16 | 78 | 250 | 2.45 |
| QSL-10 | 10 | 78 | 20 | 20 | W-3/8 | 157 | 350 | 3.43 |
| QSL-12 | 12 | 96 | 24 | 24 | W-1/2 | 277 | 420 | 4.12 |

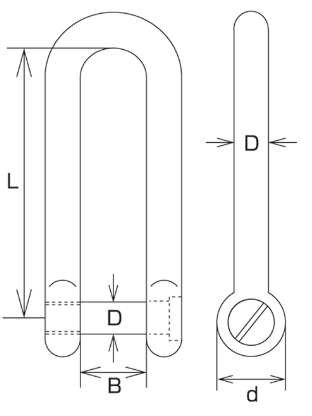

Dimensions (mm)
