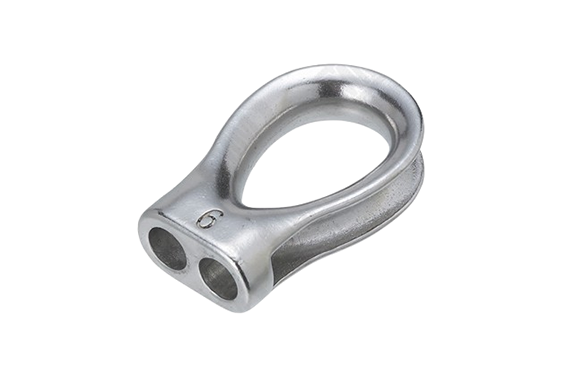

Mizumoto KRS Series Rope Thimble
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KRS Series
Features
- It is dedicated to textile ropes.
- When using the tip of the fiber rope with eye processing, it prevents the rope from wearing.
- Passing holes increases the sense of stability.
- As a fitting for eye processing of fiber ropes.
Specifications
| Part No. | D | L | A | B | d | Applicable Rope Diameter | Weight (g) |
| KRS-6 | 16 | 25 | 7 | 10 | 7 | 6 | 38 |
| KRS-9 | 20 | 35 | 10 | 14.5 | 10 | 9 | 54 |

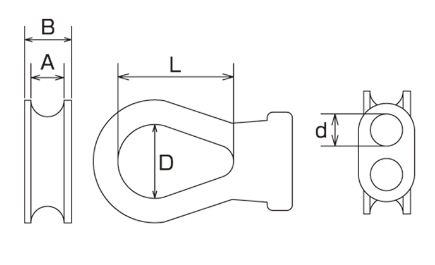

Dimensions (mm)
