Mizumoto Machine Mfg. Co.

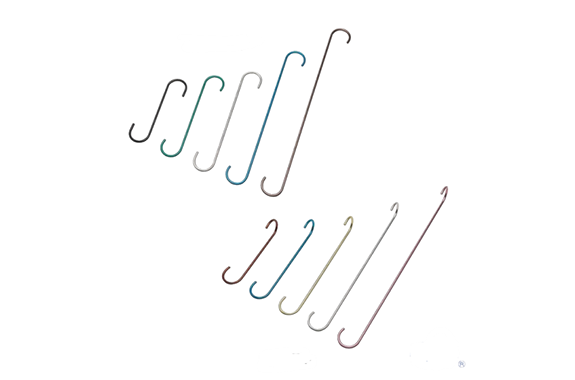

Mizumoto ALS/ ALT Series Fancy S Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: ALS/ ALT Series
Features
- Lightweight and colorful. As a hanging bracket for storing general goods.
- 7 colors in total: S = Silver, B = Blue, GR = Green, P = Light Pink, Y = Light Yellow, BN = Brown, BK = Black
Specifications
[Straight]
| Part No. | D | L1 | L2 | W | S | R | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | ||||||||
| ALS-200 | 6 | 200 | 188 | 54 | 40 | 21 | 24 | 15 | 0.15 |
| ALS-250 | 6 | 250 | 238 | 54 | 40 | 21 | 28 | 15 | 0.15 |
| ALS-300 | 6 | 300 | 288 | 54 | 40 | 21 | 32 | 15 | 0.15 |
| ALS-400 | 6 | 400 | 388 | 54 | 40 | 21 | 39 | 15 | 0.15 |
| ALS-500 | 6 | 500 | 488 | 54 | 40 | 21 | 47 | 15 | 0.15 |
[Twist]
| Part No. | D | L1 | L2 | W | S | R | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | ||||||||
| ALT-200 | 6 | 200 | 188 | 54 | 40 | 21 | 24 | 15 | 0.15 |
| ALT-250 | 6 | 250 | 238 | 54 | 40 | 21 | 28 | 15 | 0.15 |
| ALT-300 | 6 | 300 | 288 | 54 | 40 | 21 | 32 | 15 | 0.15 |
| ALT-400 | 6 | 400 | 388 | 54 | 40 | 21 | 39 | 15 | 0.15 |
| ALT-500 | 6 | 500 | 488 | 54 | 40 | 21 | 47 | 15 | 0.15 |
*The color may differ from the actual product.
*The color may fade depending on the environment.
*Aluminum light alloy used

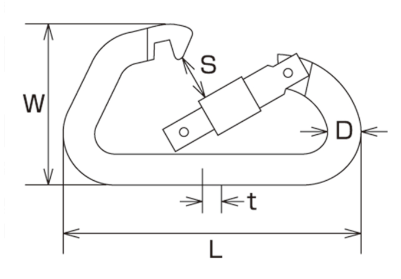

Dimensions (mm)
