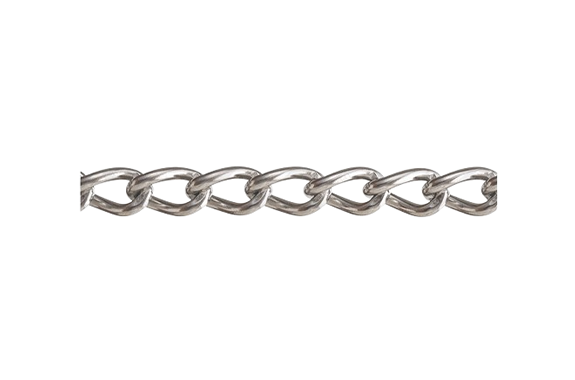

Mizumoto M Series Stainless Steel Mantell Chain
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: M Series
Features
- It is used very widely due to its excellent corrosion and oxidation resistance.
- Unlike regular ring-shaped chains, it is shaped with a twist to make it more decorative.
- As a tipping prevention and connecting part.
Specifications
| Part No. | Wire Dia. d (mm) | Inner Length P (mm) | Inner Width W (mm) | Weight per meter (kg/m) (Calculated) | Working Load (Reference) | Breaking Load (Reference) | ||
| (kgf) | (kN) | (kgf) | (kN) | |||||
| 1.6-M | 1.6 | 5.5 | 2.5 | 0.058 | 18 | 0.18 | 36 | 0.35 |
| 2.0-M | 2 | 8.7 | 3.4 | 0.082 | 30 | 0.29 | 60 | 0.59 |
| 2.5-M | 2.5 | 9.6 | 4.4 | 0.132 | 50 | 0.49 | 100 | 0.98 |
| 3.0-M | 3 | 12.6 | 5.5 | 0.182 | 70 | 0.69 | 140 | 1.37 |
*Material: Both stainless steel SUS304 and SUS316 are in stock.
(The standard product is SUS304, so please specify if you would like SUS316.)
*The fixed size is 30m per piece.
Dimensions (mm)
