Mizumoto Machine Mfg. Co.

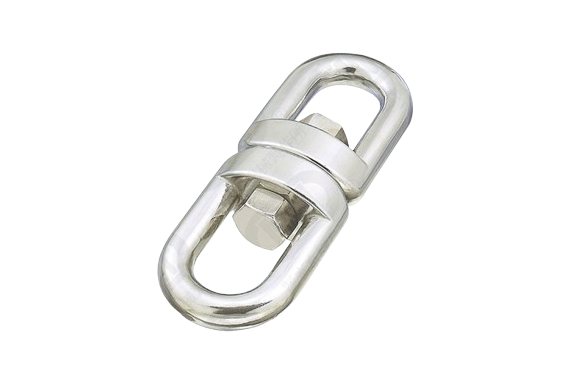

Mizumoto MSX Series Powerful Swivel
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MSX Series
Features
- It rotates to remove twisting. The center part rotates and is used as a fixer.
Specifications
| Product Number | D | L1 | W1 | L2 | W2 | T | A | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| MSX-16 | 16 | 187 | 71 | 41 | 39 | 44 | 22 | 1417 | 1500 | 14.70 |
| MSX-19 | 20 | 229 | 81 | 50 | 41 | 48 | 24 | 2323 | 2000 | 19.60 |

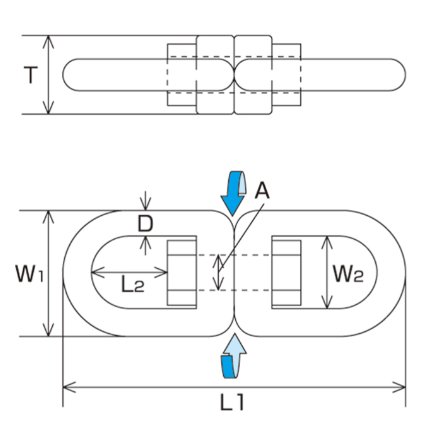

Dimensions (mm)
