Mizumoto Machine Mfg. Co.

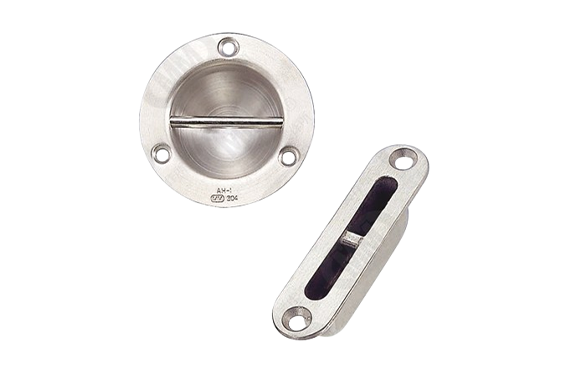

Mizumoto AH Series Receipt Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: AH Series
Features
- Since it is an embedded type, protrusions do not get in the way after installation, giving it a smart appearance.
- It is installed on walls, floors, columns, etc., and is used as terminal fittings such as chains, wires, and ropes.
- Stainless steel plate with wooden twister.
- Only the surface is finished with a hairline finish.
Specifications
| Item No. | D | L1 | L2 | H | h | d | Chain Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| AH-1 | 4 | 60 | 39 | 22 | 0.8 | 4 | φ2→φ3 | 27 | 7 | 0.07 |
| AH-2 | 6 | 88 | 58 | 33 | 0.8 | 6.2 | φ4→φ5 | 66 | 30 | 0.29 |
| Item No. | A1 | A2 | A3 | B1 | B2 | B3 | L | H | S | d | Chain Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AH-3 | 26 | 16 | 10 | 106 | 90 | 68 | 74 | 33 | 6 | 7 | φ6→φ8 | 157 | 30 | 0.29 |

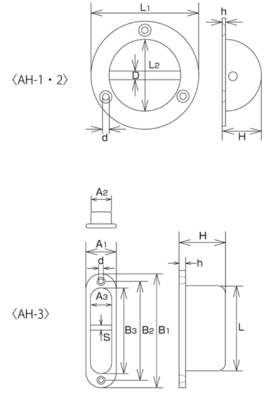

Dimensions (mm)
