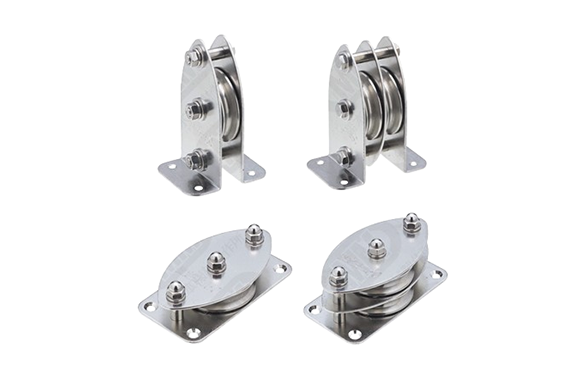

Mizumoto T, T-W, Y, Y-W Series Fixing Blocks
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: T, T-W, Y, Y-W Series
Features
- It is a pulley that can be fixed to columns, walls, floors, etc.
- By combining it with a block of two vehicles, the force required for lifting and unloading the load can be reduced to 1/2 or 1/3. Passing through ropes, etc., for lifting + tensioning work such as loads.
Specifications
T-Type
| Model | Frame Material | Sheave Material | Bearing | Wheel Diameter | Wheel Width | Groove Width | Applicable Rope Diameter | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| T-50 | Stainless Steel (SUS304, Electrolytic Polished) | Stainless Steel | Oil-Impregnated Metal | 50 | 12.8 | 10 | ~φ8 | 330 | 150 | 1.47 |
| T-50W | Stainless Steel (SUS304, Electrolytic Polished) | Stainless Steel | Oil-Impregnated Metal | 50 | 12.8 | 10 | ~φ8 | 550 | 150 | 1.47 |
| A | B | C | D | E | F | G | H | I | J | K | L |
| 36 | 52 | 2 | 15 | 19 | 36 | 41 | 63 | 58 | 80 | 5 | 98 |
Yoke Type
| Model | Frame Material | Sheave Material | Bearing | Wheel Diameter | Wheel Width | Groove Width | Applicable Rope Diameter | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| Y-50 | Stainless Steel (SUS304, Electrolytic Polished) | Stainless Steel | Stainless Steel Oil-Impregnated Metal | 50 | 12.8 | 10 | ~φ8 | 300 | 150 | 1.47 |
| Y-50W | Stainless Steel (SUS304, Electrolytic Polished) | Stainless Steel | Stainless Steel Oil-Impregnated Metal | 50 | 12.8 | 10 | ~φ8 | 510 | 150 | 1.47 |
| A | B | C | D | E | F | G | L |
| 36 | 82 | 52 | 15 | 36 | 2 | 5 (M8.5) | 98 |

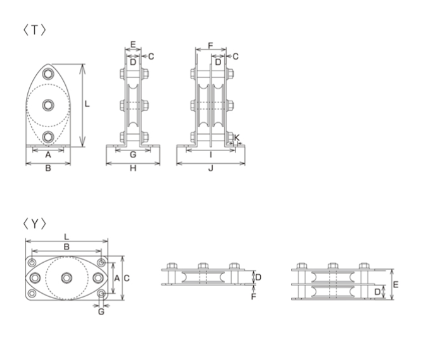

Dimensions (mm)
