Mizumoto Machine Mfg. Co.

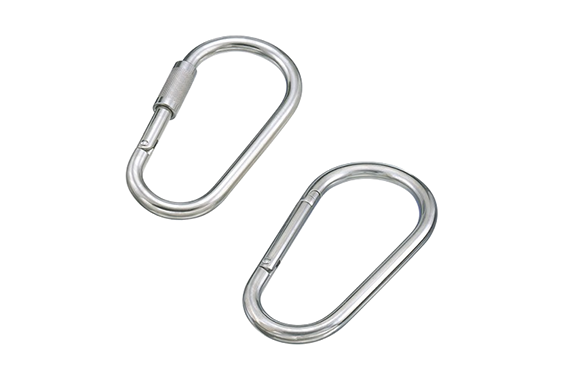

Mizumoto XJB Series Carabiners Jumbo
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: XJB Series
Features
- The hook does not open inadvertently, which is more secure.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings. No rings.
Specifications
| Item | D (in) | L (in) | W (in) | S (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|
| XJXB-12A | 12 | 169 | 93 | 43 | 326 | 250 | 2.45 |
| XJXB-14A | 14 | 204 | 105 | 47 | 540 | 350 | 3.43 |
| XJXB-16A | 16 | 229 | 124 | 58 | 822 | 450 | 4.41 |
With Attachments
| Item | D (in) | L (in) | W (in) | S (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|
| XJXB-12B | 12 | 169 | 93 | 43 | 348 | 300 | 2.94 |
| XJXB-14B | 14 | 204 | 105 | 47 | 562 | 400 | 3.53 |
| XJXB-16B | 16 | 229 | 124 | 58 | 876 | 500 | 4.90 |
*It cannot be used as a safety belt.

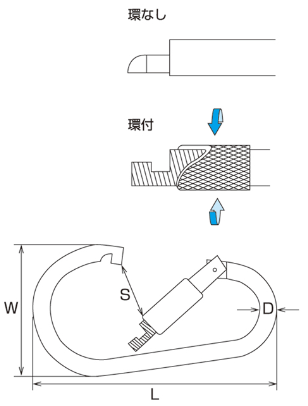

Dimensions (mm)
