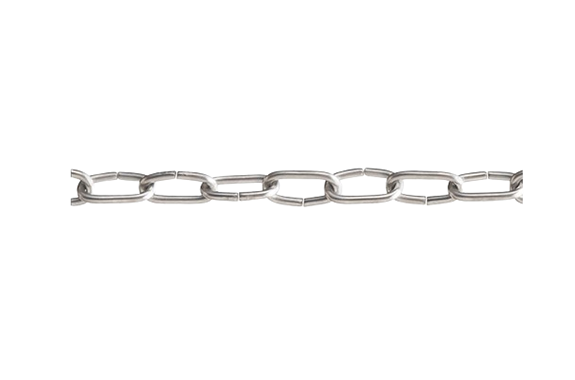

Mizumoto N Series Stainless Steel Chain (No Welding)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: N Series
Features
- It is used very widely due to its excellent corrosion and oxidation resistance.
Specifications
| Part No. | Wire Dia. d (mm) | Inner Length P (mm) | Inner Width W (mm) | Weight per meter (kg/m) (Calculated) | Working Load (Reference) | Breaking Load (Reference) | ||
| (kgf) | (kN) | (kgf) | (kN) | |||||
| 1.2-N | 1.2 | 7.7 | 3 | 26 | 3 | 0.03 | 6 | 0.06 |
| 1.4-N | 1.4 | 7.3 | 3.2 | 38 | 5 | 0.05 | 10 | 0.1 |
| 1.4-NL | 1.4 | 14.5 | 4.4 | 32 | 2 | 0.02 | 4 | 0.04 |
| 1.6-N | 1.6 | 16.8 | 5 | 40 | 3 | 0.03 | 6 | 0.06 |
*Material: Both stainless steel SUS304 and SUS316 are in stock. (However, 1.4-NL is only 304)
(The standard product is SUS304, so please specify if you want SUS316.)
*The fixed size is 30m per piece.

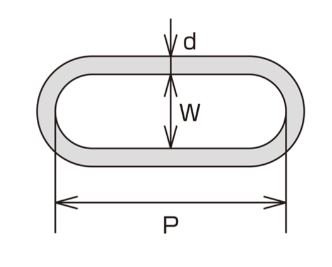

Dimensions (mm)
