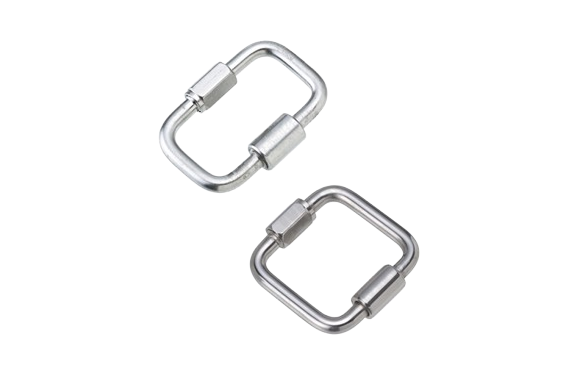

Mizumoto OQC Series Square Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: OQC Series
Features
- Rotates 360°. It can be used with a wide belt.
- As a connecting metal fitting between belt-shaped flat objects such as rubber and fibers.
- This is the reference load when pulling through the belt.
Specifications
| Part No. | D | L | B1 | B2 | E | Weight (g) | Reference Working Load (kgf) | (kN) |
| OQC-5 | 5 | 40 | 22 | 17 | 6.6 | 31 | 110 | 1.08 |
| OQC-6 | 6 | 46 | 26 | 21 | 7.6 | 47 | 200 | 1.96 |
| OQC-8 | 8 | 50 | 45 | 39 | 10.3 | 106 | 250 | 2.45 |
| OQC-10 | 10 | 65 | 55 | 46 | 12.5 | 210 | 300 | 2.94 |
*This is the reference load when pulling through the belt.
*Rotates 360 degrees.

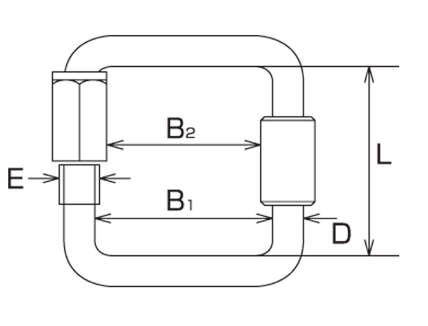

Dimensions (mm)
