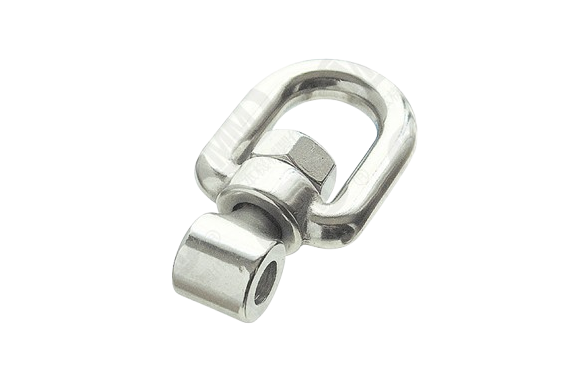

Mizumoto JS Series Joint Swivel
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: JS Series
Features
- By combining it with a shackle, it can be used as a swivel that moves in any direction.
- In combination with a shackle, it can be used as a swivel.
Specifications
| Product Number | D | L | W | A | d | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| JS-6 | 6 | 16 | 16 | 11 | 6.5 | 42 | 180 | 1.76 |
| JS-8 | 8 | 19.5 | 20 | 15 | 8.5 | 87 | 250 | 2.45 |
| JS-10 | 10 | 25 | 24 | 19 | 10.5 | 172 | 400 | 3.92 |
| JS-13 | 13 | 34 | 33 | 25 | 13.5 | 356 | 900 | 8.82 |
| JS-16 | 16 | 45 | 39 | 31 | 16.5 | 633 | 1200 | 11.76 |
| JS-19 | 19 | 50 | 42 | 37 | 19.5 | 1070 | 1800 | 17.64 |
| JS-22 | 22 | 52 | 47 | 41 | 22.5 | 1535 | 2250 | 22.05 |

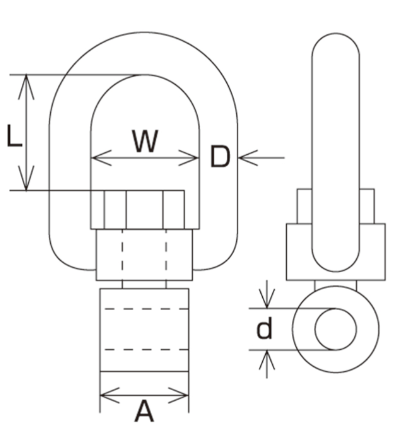

Dimensions (mm)
