Mizumoto Machine Mfg. Co.
Mizumoto KM Series Bean Thimble
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KM Series
Features
- It is used as a wire course for terminal processing.
- When using the wire rope tip with eye processing, it prevents wire wear.
Specifications
| Part No. | D | L | A | B | Applicable Rope Diameter | Weight (g) |
| KM-5 | 11 | 17 | 5.5 | 7 | 5 | 3 |
| KM-6 | 12 | 20 | 7 | 8.5 | 6 | 5 |
| KM-7 | 15 | 28 | 7 | 10 | 7 | 11 |
*KM-4 has been discontinued. The equivalent product is the Light Thimble KR-4.

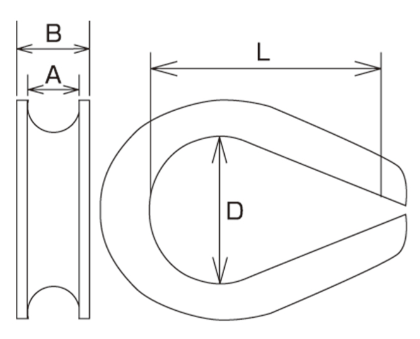

Dimensions (mm)
