Mizumoto Machine Mfg. Co.

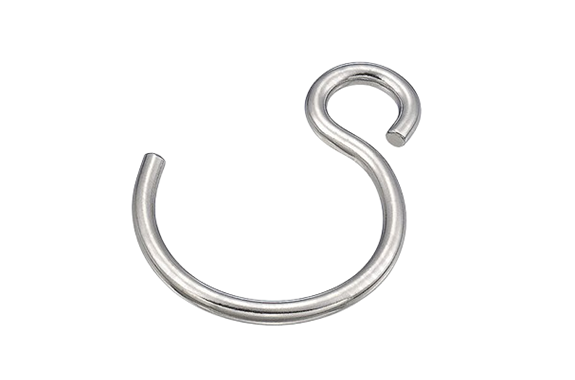

Mizumoto SAE Series S Kan
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SAE Series
Features
- It is an S can with a deep pocket on one side.
- It is used to connect the chain to the lid of the fire hydrant.
Specifications
| Part No. | D | L1 | L2 | W1 | W2 | S1 | S2 | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| SAE-3 | 3 | 36 | 30 | 7.5 | 18.5 | 3.2 | 13 | 4 | 7 | 0.07 |
| SAE-4 | 4 | 41.5 | 33.5 | 7.5 | 20 | 3.5 | 15 | 8 | 15 | 0.15 |
| SAE-5 | 5 | 75 | 65 | 15 | 45 | 4.5 | 30 | 25 | 20 | 0.2 |

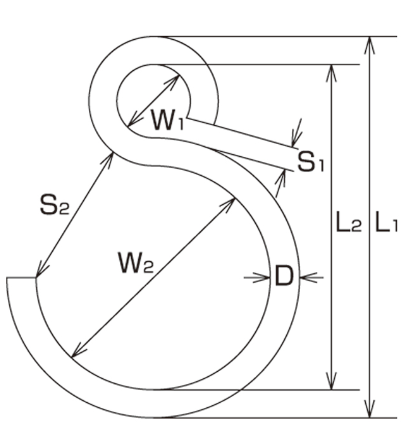

Dimensions (mm)
