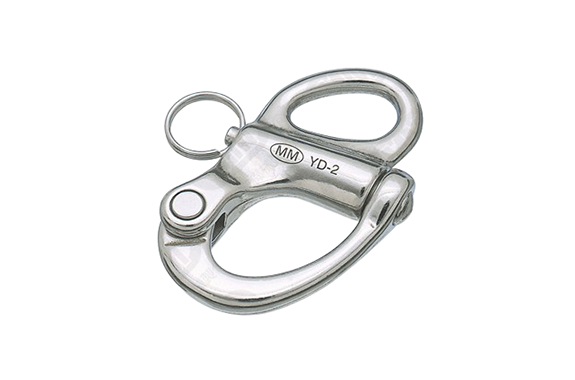

Mizumoto YD Series Fixed Snap Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YD Series
Features
- Pull the ring to release the hook.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Model | D | L | W | B | d | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| YD-0 | 2.7 | 32 | 20 | 9 | 7 | 11 | 50 | 0.49 |
| YD-1 | 4 | 55 | 37 | 14 | 10 | 45 | 150 | 1.47 |
| YD-2 | 6 | 70 | 47 | 19 | 12 | 92 | 220 | 2.16 |
| YD-3 | 7 | 102 | 60 | 26 | 17 | 225 | 430 | 4.21 |

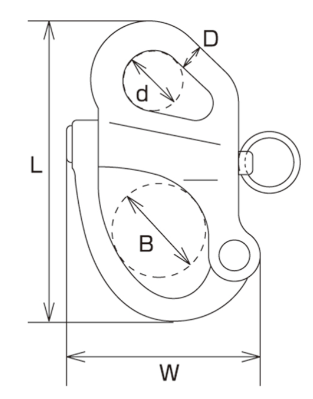

Dimensions (mm)
