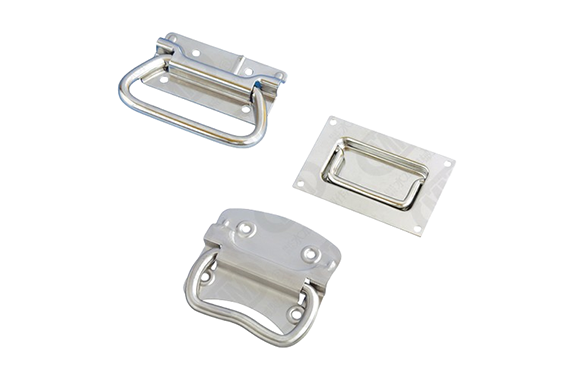

Mizumoto TT Series Trunk Handle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TT Series
Features
- It is made of stainless steel, rust-resistant, and durable.
- Used as a part of the machine and as a handle.
Specifications
| Item No. | D | L1 | L2 | W | A1 | A2 | A3 | B1 | B2 | B3 | H | d | T | Weight | Max Load (kgf) | Max Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TT-1 | 8 | 70 | 31 | 100 | 86 | 58 | 38 | 46 | 27 | 10 | 12 | 5.2 | 1.5 | 142 | 20 kgf | 0.2 kN |
| TT-2 | 8 | 46 | – | 86 | 122 | 110 | – | 78 | 66 | – | 14 | 5.4 | 1 | 142 | 20 kgf | 0.2 kN |
| TT-3 | 9 | 95 | 30 | 90 | 92 | 69 | 49.5 | 82 | 45 | – | 13 | 5.1 | 1.2 | 161 | 20 kgf | 0.2 kN |

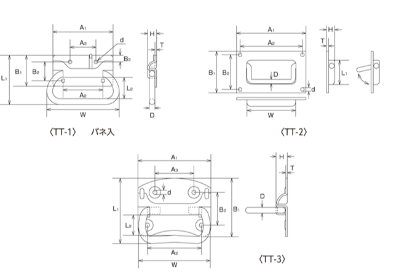

Dimensions (mm)
