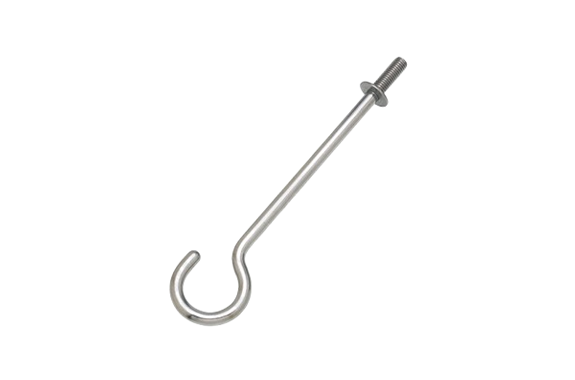

Mizumoto LQH Series Long Hanging Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LQH Series
Features
- It is made of stainless steel, so it has excellent corrosion resistance.
- It is installed on the floor and columns, and is used as the end metal fittings of chains, wires, and ropes.
Specifications
| Product Number | D | L | L1 | B | W | S | A | T | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| LQH-10 | 9 | 217 | 187 | 30 | 32 | 17 | 22 | 2 | M-10 | 140 | 75 | 0.74 |
| LQH-12 | 12 | 292 | 262 | 30 | 37 | 20 | 22 | 2 | M-12 | 318 | 125 | 1.23 |

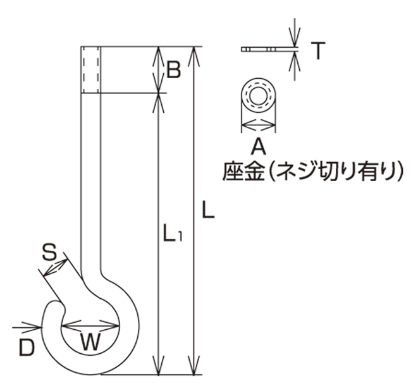

Dimensions (mm)
