Mizumoto Machine Mfg. Co.

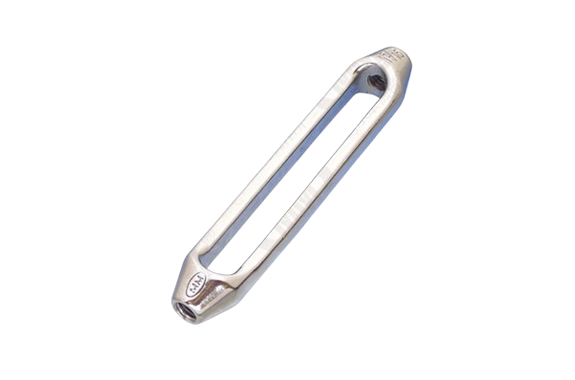

Mizumoto TB Series Frame Type Turnbuckle Frame Only
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TB Series
Features
- Only framed turnbuckle frames. The hooks can be rearranged and used. To adjust the tension of the wire rope.
Specifications
Whitworth Thread
| Model | L | Thread Size |
| TB-4W | 57 | W-3/16 |
| TB-5W | 70 | W-3/16 |
| TB-6W | 90 | W-1/4 |
| TB-8W | 120 | W-5/16 |
| TB-9W | 150 | W-3/8 |
| TB-12W | 200 | W-1/2 |
| TB-16W | 250 | W-5/8 |
Metric Thread
| Model | L | Thread Size |
| TB-3M | 45 | M-3 |
| TB-4M | 57 | M-4 |
| TB-5M | 70 | M-5 |
| TB-6M | 90 | M-6 |
| TB-8M | 120 | M-8 |
| TB-10M | 150 | M-10 |
| TB-12M | 200 | M-12 |
| TB-16M | 250 | M-16 |
| TB-20M | 300 | M-20 |
| TB-22M | 325 | M-22 |
| TB-25M | 350 | M-24 |
*It is also possible to sell only the hook of the turnbuckle separately.

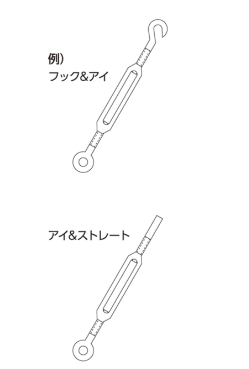

*Recombinations of hooks, eyes, straights, etc. are also possible.
*Please inquire about combinations that can be recombined.
Dimensions (mm)
