Mizumoto Machine Mfg. Co.

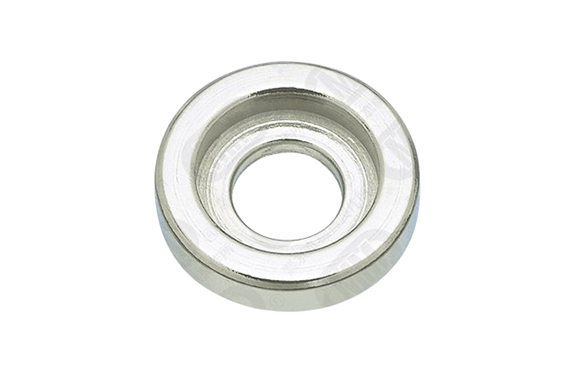

Mizumoto TOW Series Receiver Washer
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TOW Series
Features
- By combining it with the pick-up, it will give it a luxurious feel.
Specifications
| Product Code | A1 | A2 | A3 | T1 | T2 | Weight per 10 Units (g) | Suitable Size |
|---|---|---|---|---|---|---|---|
| NEW TOW-4 | 6 | 4.2 | 2.8 | 2 | 1 | 26 | Handle size φ4 |
| TOW-6 | 10 | 6.2 | 4.3 | 2.5 | 1.5 | 11 | Handle size φ6 |
| TOW-7 | 11 | 7.2 | 5.1 | 2.5 | 1.5 | 12 | Handle size φ7 |
| TOW-8 | 13 | 8.2 | 5 | 3 | 1 | 20 | Handle size φ8 |
| TOW-9 | 13 | 9.2 | 5.2 | 3 | 1 | 17 | Handle size φ9 |
| TOW-10 | 15 | 10.2 | 6 | 3.5 | 1.5 | 30 | Handle size φ10 |
| TOW-12 | 18 | 12.2 | 8.3 | 4.6 | 1.6 | 55 | Handle size φ12 |
*Please also inquire about the take-off. (Take-off)

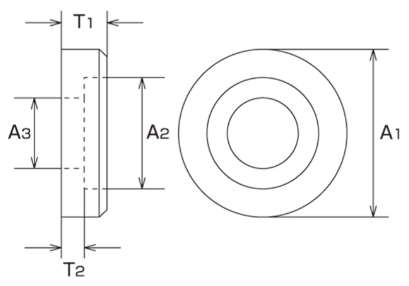

Dimensions (mm)
